LCD Rear Displays
Model Details
- Designed for arm or wall mount applications
- Complete monitors (without stand)
- Toughened protective glass
- Ideal for touchscreen operation
- Full metal construction
- Custom colours available
- 12v DC or 15-30v DC or 90 - 260v AC operation
- 6.5 inch- 29LM065E61MY/1
- 6.5 inch- 29LM065E61PY/1
- 8.4 inch- 29LM081E61MY
- 8.4 inch- 29LM081E61PY
- 10.4 inch- 29LM101E61MY/1
- 10.4 inch- 29LM101E61MY/1
- 12.1 inch- 29LM121E61MY
- 12.1 inch- 29LM121E61PY
- 15 inch- 29LM151E61MY
- 15 inch- 29LM151E61PY
- 17 inch- 29LM171E61MP/5
- 17 inch- 29LM171A61MP/5
- 17 inch- 29LM171A68MP/5
- 19 inch- 29LM1901A61M/2
- 19 inch- 29LM1901E31MPY/1
- 21.3 inch- 29LM211A31MPY
29LM065E61MY/1
- Sizes: 6.5 inch
- Max Resolution: 640 x 480 pixels
- Active Display: 134.5 x 101.4 mm
- Brightness: 400cd/m2 typical
- Viewing Angles: 110°H / 90°V
- Signal Sync: Separate H &V (+/ve) TTL
- Power Supply: 12.0v DC
- Power Consumption: 15W (Max)
- Monitor Dimensions: 192 x 147 x 66mm
- Monitor Weight: 1.5kg approx
29LM065E61PY/1
- Sizes: 6.5 inch
- Max Resolution: 640 x 480 pixels
- Active Display: 134.5 x 101.4 mm
- Brightness: 400cd/m2 typical
- Viewing Angles: 110°H / 90°V
- Signal Sync: Composite (CVBS) 1Vp-p
- Power Supply: 12.0v DC
- Power Consumption: 15W (Max)
- Monitor Dimensions: 192 x 147 x 66mm
- Monitor Weight: 1.5kg approx
29LM081E61MY
- Sizes: 8.4 inch
- Max Resolution: 800 x 600 pixels
- Active Display: 170.4 x 127.8 mm
- Brightness: 400cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Separate H &V (+/ve) TTL
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 15W (Max)
- Monitor Dimensions: 218 x 186 x 58 mm
- Monitor Weight: 1.5kg approx
29LM081E61PY
- Sizes: 8.4 inch
- Max Resolution: 800 x 600 pixels
- Active Display: 170.4 x 127.8 mm
- Brightness: 350cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Composite (CVBS) 1Vp-p
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 15W (Max)
- Monitor Dimensions: 218 x 186 x 58 mm
- Monitor Weight: 1.5kg approx
29LM101E61MY/1
- Sizes: 10.4 inch
- Max Resolution: 640 x 480 pixels
- Active Display: 211.2mm x 158.4mm
- Brightness: 450cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Separate H &V (+/ve) TTL
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 15W (Max)
- Monitor Dimensions: 263.4 x 195.2 x 44.4mm
- Monitor Weight: 2kg approx
29LM101E61MY/1
- Sizes: 10.4 inch
- Max Resolution: 640 x 480 pixels
- Active Display: 211.2mm x 158.4mm
- Brightness: 450cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Composite (CVBS) 1Vp-p
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 15W (Max)
- Monitor Dimensions: 263.4 x 195.2 x 44.4mm
- Monitor Weight: 2kg approx
29LM121E61MY
- Sizes: 12.1 inch
- Max Resolution: 800 x 600 pixels
- Active Display: 246mm x 184.5mm
- Brightness: 450cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Separate H&V (+/-ve) TTL
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 30W (Max)
- Monitor Dimensions: 294 x 237.4 x 57.7 mm
- Monitor Weight: 2kg approx
29LM121E61PY
- Sizes: 12.1 inch
- Max Resolution: 800 x 600 pixels
- Active Display: 246mm x 184.5mm
- Brightness: 350cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Composite (CVBS) 1Vp-p
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 30W (Max)
- Monitor Dimensions: 294 x 237.4 x 57.7 mm
- Monitor Weight: 2kg approx
29LM151E61MY
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304 x 228mm
- Brightness: 230cd/m2 typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Separate H&V (+/-ve) TTL
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 35W (Max)
- Monitor Dimensions: 388 x 296 x 65mm
- Monitor Weight: 3kg approx
29LM151E61PY
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304 x 228mm
- Brightness: 230cd/m2 typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Composite (CVBS) 1V p-p
- Power Supply: 12.0v DC at 0.8A approx External AC/DC Power
- Power Consumption: 35W (Max)
- Monitor Dimensions: 388 x 296 x 65mm
- Monitor Weight: 3kg approx
29LM171E61MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 337.9 x 270.3mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Composite (CVBS) 1V p-p Separate H&V (+/-ve) TTL Sync-on-Green -0.3Vp-p
- Power Supply: 12v DC
- Power Consumption: 60W (Max)
- Monitor Dimensions: 404 x 334 x 57mm
- Monitor Weight: 5kg approx
29LM171A61MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 337.9 x 270.3mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Separate H&V (+/-ve) TTL, Composite (CVBS) 1V p-p
- Power Supply: 90 - 260v AC 50/60Hz
- Power Consumption: 60W (Max)
- Monitor Dimensions: 404 x 334 x 57mm
- Monitor Weight: 5kg approx
29LM171A68MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 337.9 x 270.3mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 160°H / 160°V
- Signal Sync: Separate H&V (+/-ve) TTL, Composite (CVBS) 1V p-p
- Power Supply: 90 - 260v AC 50/60Hz
- Power Consumption: 60W (Max)
- Monitor Dimensions: 404 x 334 x 57mm
- Monitor Weight: 5kg approx
29LM1901A61M/2
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 376 x 301 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H&V (+/-ve) TTL
- Power Supply: 90 - 260v AC 50/60Hz
- Power Consumption: 60W (Max)
- Monitor Dimensions: 430 x 430 x 187 mm
- Monitor Weight: 6.5kg approx

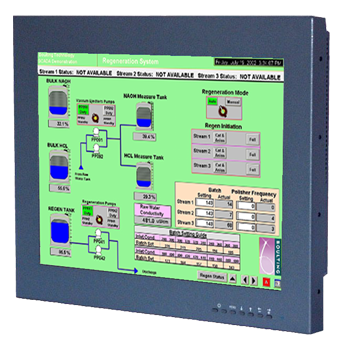

29LM1901E31MPY/1
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 376 x 301 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H&V (+/-ve) TTL Composite (CVBS) 1V p-p
- Power Supply: 12v DC
- Power Consumption: 60W (Max)
- Monitor Dimensions: 430(w) x 360(h) x 66(d) mm
- Monitor Weight: 8kg approx
29LM211A31MPY
- Sizes: 21.3 inch
- Max Resolution: 1600 x 1200 pixels
- Active Display: 432 x 324mm
- Brightness: 300cd/m²typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H&V (+/-ve) TTL Composite (CVBS) 1V p-p or Composite (-ve) TTL or Sync-on-Green (-ve) 0.3V
- Power Supply: 90 - 260v AC
- Power Consumption: 60W (Max)
- Monitor Dimensions: 465 x 365 x 77mm
- Monitor Weight: 8.5kg approx
