Head Mount Monitors

Head display features:

  • Used for control room environments
  • Widescreen (16:9) formats up to WXGA resolution
  • High brightness and wide viewing angles
  • Rugged construction with safety faceplate

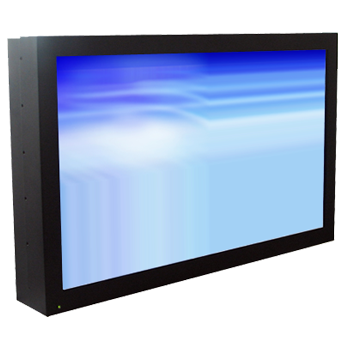

lcd-widescreen-head-mount-marine-29lm403003large

Want to find out more about this product?

Call us on 01634 830 123 or GET IN TOUCH
29LM403003
  • Sizes: 40 inch
  • Max Resolution: 1366 x 768 pixels WXGA
  • Active Display: 885 x 497 mm
  • Brightness: 500cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Power Supply: 110/220v 50/60Hz
  • Power Consumption: 330W (Max)
  • Monitor Dimensions: 1000 x 610 x 140 mm
  • Monitor Weight: 54kg approx
-pdf

29LM403003.pdf - 284.13kB

29LM463003
  • Sizes: 46 inch
  • Max Resolution: 1366 x 768 pixels WXGA
  • Active Display: 1018.3x 572.5 mm
  • Brightness: 500cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Power Supply: 110-220v AC 50-60Hz
  • Monitor Dimensions: 1126 x 682 x 155 mm
  • Monitor Weight: 65kg approx
-pdf

29LM463003.pdf - 286.77kB

29LM523003
  • Sizes: 65kg approx
  • Max Resolution: 1366 x 768 pixels WXGA
  • Active Display: 1018.3x 572.5 mm
  • Viewing Angles: 178°H / 178°V
  • Power Supply: 110/220v 50/60Hz
  • Power Consumption: 330W (Max)
  • Monitor Dimensions: 1126 x 682 x 155 mm
-pdf

29LM523003.pdf - 212.19kB

29LM573003
  • Sizes: 57 inch
  • Max Resolution: 1920 x 1080 pixels
  • Active Display: 1251.3x 703.8 mm
  • Brightness: 600cd/m2 typical
  • Viewing Angles: 170°H / 170°V
  • Power Supply: 110/220v 50/60Hz
  • Power Consumption: 420W (Max)
  • Monitor Dimensions: 1360 x 814 x 155 mm
  • Monitor Weight: 85kg approx
-pdf

29LM573003.pdf - 196.67kB
