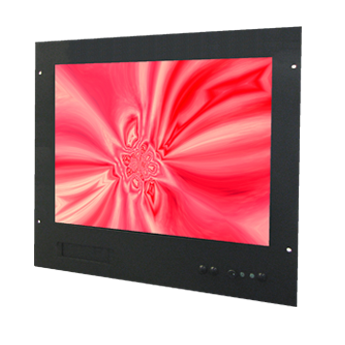

Marine Panel Mount Monitor
Model Details:
- Low-cost rack mount solution
- Advanced deep dimming 2000:1
- Automatic image size adjustment and Picture in Picture
- Built-in external power relay (AC version)
- Certified to IEC 60945
- ECDIS and radar compliant IEC 61174
- Video buffer (multi-drop) and RS232 remote control
- 15 inch- 29LRD153A35MP/5
- 15 inch- 29LRD153D35MP/5
- 15 inch- 29LRD153A35PC/1
- 15 inch- 29LRD153A35MP/1
- 17 inch- 29LRD173A35MP/5
- 17 inch- 29LRD173D35MP/5
- 19 inch- 29LRD193A35MP/6
- 19 inch- 29LRD193D35MP/6
- 21.3 inch- 29LRD213A35MP/5
- 21.3 inch- 29LRD213D35MP/5
- 23.1 inch- 29LRD233A35MP/5
- 23.1 inch- 29LRD233D35MP/5
- 26 inch- 29LRD263WA35MP/5
29LRD153A35MP/5
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 130°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
29LRD153D35MP/5
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 130°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
29LRD153A35PC/1
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: 130°H / 110°V
- Power Supply: 110-230v AC 50-60Hz
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
29LRD153A35MP/1
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m² typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 110-230v AC 50-60Hz
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
29LRD173A35MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 337.92 x 270.336 mm
- Brightness: 280cd/m2 typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 460(w) x 400(h) x 75(d)mm
- Monitor Weight: 10kg approx
29LRD173D35MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 337.92 x 270.336 mm
- Brightness: 280cd/m2 typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 460(w) x 400(h) x 75(d)mm
- Monitor Weight: 10kg approx
29LRD193A35MP/6
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 376.3 x 301.1 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 453(w) x 397(h) x 83.9(d)mm
- Monitor Weight: 11kg approx
29LRD193D35MP/6
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 376.3 x 301.1 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 453(w) x 397(h) x 83.9(d)mm
- Monitor Weight: 11kg approx
29LRD213A35MP/5
- Max Resolution: 1600 x 1200 pixels
- Active Display: 432 x 324 mm
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 534(w) x 481(h) x 82(d)mm
- Monitor Weight: 13kg approx
29LRD213D35MP/5
- Sizes: 21.3 inch
- Max Resolution: 1600 x 1200 pixels
- Active Display: 432 x 324 mm
- Brightness: 300cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 534(w) x 481(h) x 82(d)mm
- Monitor Weight: 13kg approx
29LRD233A35MP/5
- Sizes: 23.1 inch
- Max Resolution: 1600 x 1200 pixels
- Active Display: 470.4 x 352.8 mm
- Brightness: 250cd/m² typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 584(w) x 534(h) x 91.7(d)mm
- Monitor Weight: 16kg approx
29LRD233D35MP/5
- Sizes: 23.1 inch
- Max Resolution: 1600 x 1200 pixels
- Active Display: 470.4 x 352.8 mm
- Brightness: 250cd/m² typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 584(w) x 534(h) x 91.7(d)mm
- Monitor Weight: 16kg approx
29LRD263WA35MP/5
- Sizes: 26 inch
- Max Resolution: 1920 x 1200 WUXGA
- Active Display: 550.08 x 343.8mm
- Brightness: 500cd/m2 typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90/265v 50/60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 665(w) x 526(h) x 91.7(d)mm
- Monitor Weight: 16kg approx
