Rear Mount Marine Monitors
Model Details:
- Versatile Display Head (VESA)
- Advanced deep dimming 2000:1
- Certified to IEC 60945
- Built-in external power relay (AC version)
- Contrast enhancing AR safety glass
- ECDIS and radar compliant IEC 61174
- Video buffer (multi-drop) and RS232 remote control
29LM151030
- Sizes: 15 inch
- Max Resolution: 1024 x 768 XGA
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 130°V
- Signal Sync: VGA - XGA, PAL / NTSC
- Power Supply: 15 - 30v DC
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx

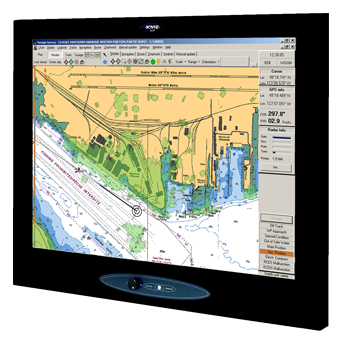

29LM190003/1
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 pixels
- Active Display: 376.3 x 301.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50/60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 453(W) x 397(H) x 83.9(D) mm
- Monitor Weight: 10kg approx
29LM213003/1
- Sizes: 21.3 inch
- Max Resolution: 1600 x 1200 pixels
- Active Display: 432 x 324mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50/60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 508(W) x 420(H) x 83.9(D) mm
- Monitor Weight: 10.6kg approx
29LM233A35MP/4
- Sizes: 23.1 inch
- Max Resolution: 1600 x 1200 pixels
- Active Display: 470.4 x 352.8 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50/60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 547(w) x 450(h) x 106(d)mm
- Monitor Weight: 16kg approx
