Rear Mount Military Monitors

Model Details:

  • Non-glare Glass Protection Screen, AR Coated
  • High Brightness & Wide Viewing Angles
  • Deep Dimming Capability
  • VESA Standard Rear Fixing

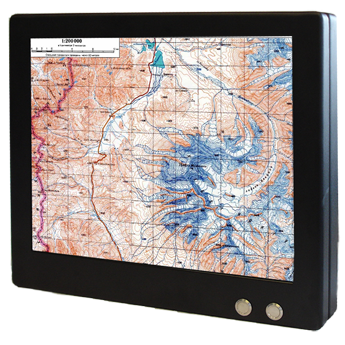

head-mount-29lm153d31mp-mlarge

Want to find out more about this product?

Call us on 01634 830 123 or GET IN TOUCH
29LM103D31MP-M
  • Sizes: 10.4 inch
  • Max Resolution: 640 x 480 pixels
  • Active Display: 132.48 x 99.36 mm
  • Brightness: 400cd/m2 typical
  • Viewing Angles: 160°H / 160°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 15 - 30v DC
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: 258 x 199.5 x 70mm (approx)
  • Monitor Weight: 3kg approx
-pdf

29LM103D31MP-M.pdf - 605.87kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM123D31MP-M
  • Sizes: 12.1 inch
  • Max Resolution: 800 x 600 pixels
  • Active Display: 246 x 184.5 mm
  • Brightness: 400cd/m2 typical
  • Viewing Angles: 160°H / 160°V
  • Connector: Signal: 8STO-12G35SN
  • Signal Sync: VGA-XGA, PAL / NTSC
  • Power Supply: 15 - 30v DC
  • Power Consumption: 20W (Max)
  • Monitor Dimensions: 334 x 280 x 75mm (approx)
  • Monitor Weight: 3kg approx
-pdf

29LM123D31MP-M.pdf - 605.39kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM153A31MP-M
  • Sizes: 15 inch
  • Max Resolution: 1024 x 768 pixels
  • Active Display: 304.1 x 228.1 mm
  • Brightness: 250cd/m2 typical
  • Viewing Angles: 130°H / 110°V
  • Connector: Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90 - 265v AC 50-60Hz
  • Power Consumption: 50W (Max)
  • Monitor Dimensions: 380 x 324 x 75mm (approx)
  • Monitor Weight: 10kg approx
-pdf

29LM153A31MP-M.pdf - 532.56kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM153D31MP-M
  • Sizes: 15 inch
  • Max Resolution: 1024 x 768 pixels
  • Active Display: 304.1 x 228.1 mm
  • Brightness: 250cd/m2 typical
  • Viewing Angles: 130°H / 110°V
  • Connector: Signal: 8STO-12G35SN
  • Signal Sync: VGA-XGA, PAL / NTSC
  • Power Supply: 15 - 30v DC
  • Power Consumption: 50W (Max)
  • Monitor Dimensions: 380 x 324 x 75mm (approx)
  • Monitor Weight: 10kg approx
-pdf

29LM153D31MP-M.pdf - 742.37kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM173A31MP-M
  • Max Resolution: 1280 x 1024 pixels
  • Active Display: 337.9 x 270.3mm
  • Brightness: 280cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90 - 265v AC 50-60Hz
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: 440(w) x 352(h) x TBD(d) mm (approx)
  • Monitor Weight: TBD
-pdf

29LM173A31MP-M.pdf - 394.37kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM173D31MP-M
  • Sizes: 17 inch
  • Max Resolution: 1280 x 1024 pixels
  • Active Display: 337.9 x 270.3mm
  • Brightness: 280cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 15 - 30v DC
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: 440(w) x 352(h) x TBD(d) mm (approx)
  • Monitor Weight: TBD
-pdf

29LM173D31MP-M.pdf - 628.11kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM1903A31MP-M
  • Sizes: 19 inch
  • Max Resolution: 1280 x 1024 pixels
  • Active Display: 376 x 301mm
  • Brightness: 250cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90-265v AC 50-60Hz
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: 453(w) x 397(h) x 76(d) mm (approx)
  • Monitor Weight: 12kg Max.
-pdf

29LM1903A31MP-M.pdf - 394.95kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM1903D31MP-M
  • Sizes: 19 inch
  • Max Resolution: 1280 x 1024 pixels
  • Active Display: 376 x 301mm
  • Brightness: 250cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90-265v AC 50-60Hz
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: 453(w) x 397(h) x 76(d) mm (approx)
  • Monitor Weight: 12kg Max.
-pdf

29LM1903D31MP-M.pdf - 628.30kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
  • Transflective sunlight readable enhancement
29LM203A31MP-M
  • Sizes: 20.1 inch
  • Max Resolution: 1600 x 1200 pixels
  • Active Display: 408 x 306mm
  • Brightness: 300cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90-265v AC 50-60Hz
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: TBD
  • Monitor Weight: TBD
-pdf

29LM203A31MP-M.pdf - 388.34kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
29LM203D31MP-M
  • Sizes: 20.1 inch
  • Max Resolution: 1600 x 1200 pixels
  • Active Display: 408 x 306mm
  • Brightness: 300cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 15 - 30v DC
  • Power Consumption: 60W (Max)
  • Monitor Dimensions: TBD
  • Monitor Weight: TBD
-pdf

29LM203D31MP-M.pdf - 628.68kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
29LM213A31MP-M
  • Sizes: 21.2 inch
  • Max Resolution: 1600 x 1200 pixels
  • Active Display: 432 x 324 mm
  • Brightness: 280cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90-265v AC 50-60Hz
  • Power Consumption: 85W (Max)
  • Monitor Dimensions: 483 x 478 x TBD mm (approx)
  • Monitor Weight: 14kg Max.
-pdf

29LM213A31MP-M.pdf - 391.88kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
29LM213D31MP-M
  • Sizes: 21.3 inch
  • Max Resolution: 1600 x 1200 pixels
  • Active Display: 432 x 324 mm
  • Brightness: 280cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 15 - 30v DC
  • Power Consumption: 85W (Max)
  • Monitor Dimensions: 483 x 478 x TBD mm (approx)
  • Monitor Weight: 14kg Max.



-pdf

29LM213D31MP-M.pdf - 631.71kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
29LM233A31MP-M
  • Sizes: 23.1 inch
  • Max Resolution: 1600 x 1200 pixels
  • Active Display: 432 x 324 mm
  • Brightness: 280cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 90-265v AC 50-60Hz
  • Power Consumption: 85W (Max)
  • Monitor Dimensions: 573.9 x 495.8 x 11.7mm (approx)
  • Monitor Weight: TBD
-pdf

29LM233A31MP-M.pdf - 505.30kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
29LM233D31MP-M
  • Sizes: 23.1
  • Max Resolution: 1600 x 1200 pixels
  • Active Display: 432 x 324 mm
  • Brightness: 280cd/m2 typical
  • Viewing Angles: 178°H / 178°V
  • Connector: Power: 851-02R123P50 Signal: 8STO-12G35SN
  • Signal Sync: Analog RGB 0.7-1.0V p-p
  • Power Supply: 15 - 30v DC
  • Power Consumption: 85W (Max)
  • Monitor Dimensions: 573.9 x 495.8 x 11.7mm (approx)
  • Monitor Weight: TBD
-pdf

29LM233D31MP-M.pdf - 738.69kB

Optional Extras

  • Resistive touchscreen via RS232
  • Capacitive touchscreen
